Highly Competitive And Blazing Fast, But Pricey

When comparing magnetic keyboards within the same price range, differences in core features are minimal. Typically priced between $120-$200, magnetic keyboards are more expensive than traditional mechanical keyboards but offer superior performance.

Having tested various magnetic keyboards from different brands, I decided to try the IQUNIX EV63, marketed as an “entry-level” magnetic switch keyboard. Despite the entry-level label, it comes with a hefty price tag of $189. The official website showcases professional players using the EV63, hinting at its high-performance capabilities. In this review, we will closely examine the EV63 keyboard, evaluating its build quality, features, performance, and overall value for its price.

Packaging and Contents

The packaging of the EV63 is impressive, and the box contains several utilities. However, I was disappointed that IQUNIX did not include additional switches in the package. Some vendors provide extra keycap combos for a unique touch, which was missing in the EV63 box. The utilities included in the EV63 box are as follows:

1. IQUNIX EV63 magnetic keyboard
2. Braided USB Type-C to Type-A cable
3. Keycap/Switch puller
4. User Manual
5. Quick Start Guide

Specifications

• Model: EV63 Violet
• Layout：60% | ANSI(64 Keys)
• Type: Magnetic Switch Gaming HE Keyboard
• Keycaps: PBT/PC
• Switch: Magnetic X Pro/Ultra
• Polling Rate: 8000 Hz
• Latency: 0.125ms
• RT Sensitivity: 0.01mm
• Adjustable Actuation: 0.01~3.1mm
• Programmable Software: Web-based
• Compatible Systems: Windows, macOS
• Mode: Wired Only
• Hot Swappable: Yes
• N-Key Rollover: Yes
• LED: South-Facing LED
• Full Remap: Yes
• Dimension: 300.9mm * 126mm* 18.6mm (front height)
• Weight: 1206g

The EV63 utilizes Hall Effect technology, making key inputs extremely sensitive to movements. With a 63% form factor (marketed as 60%), the EV63 includes dedicated Arrow Keys, a crucial feature. The keyboard boasts an impressive 8000 Hz polling rate, achievable only through a wired connection, resulting in ultra-low latency of just 0.125ms.

Similar to other magnetic keyboards, the EV63 can register inputs at a remarkably low actuation distance of 0.01mm. Out of the box, the EV63 is set to a standard actuation distance of 1.50 mm, which can be customized using the official software. Despite the default setting, most magnetic keyboards allow users to adjust the actuation distance based on their preferences.

The EV63 offers hot-swappable switches, allowing users to replace stock switches with their preferred ones using the provided switch puller. IQUNIX offers a range of switches for its keyboards, with the EV63 offering either the Magnetic X Pro or the Magnetic X Ultra switches. While I received the latter, users have the flexibility to switch to the Pro version.

Connectivity and Ease of Use

The EV63 can only be connected via a wired connection, lacking the wireless connectivity mode found in some rival keyboards. While wired connectivity is essential for competitive gaming, wireless options provide convenience when not gaming. It would have been beneficial to see wireless connectivity in the EV63, similar to keyboards like the Womier SK75 TMR that offer multiple connectivity modes at a slightly lower price.

Due to its fully wired connection, the EV63 is ready for immediate use once connected. No additional drivers are needed for the keyboard to function, but the official software can be downloaded from the website for advanced customization options.

Build Quality and Performance

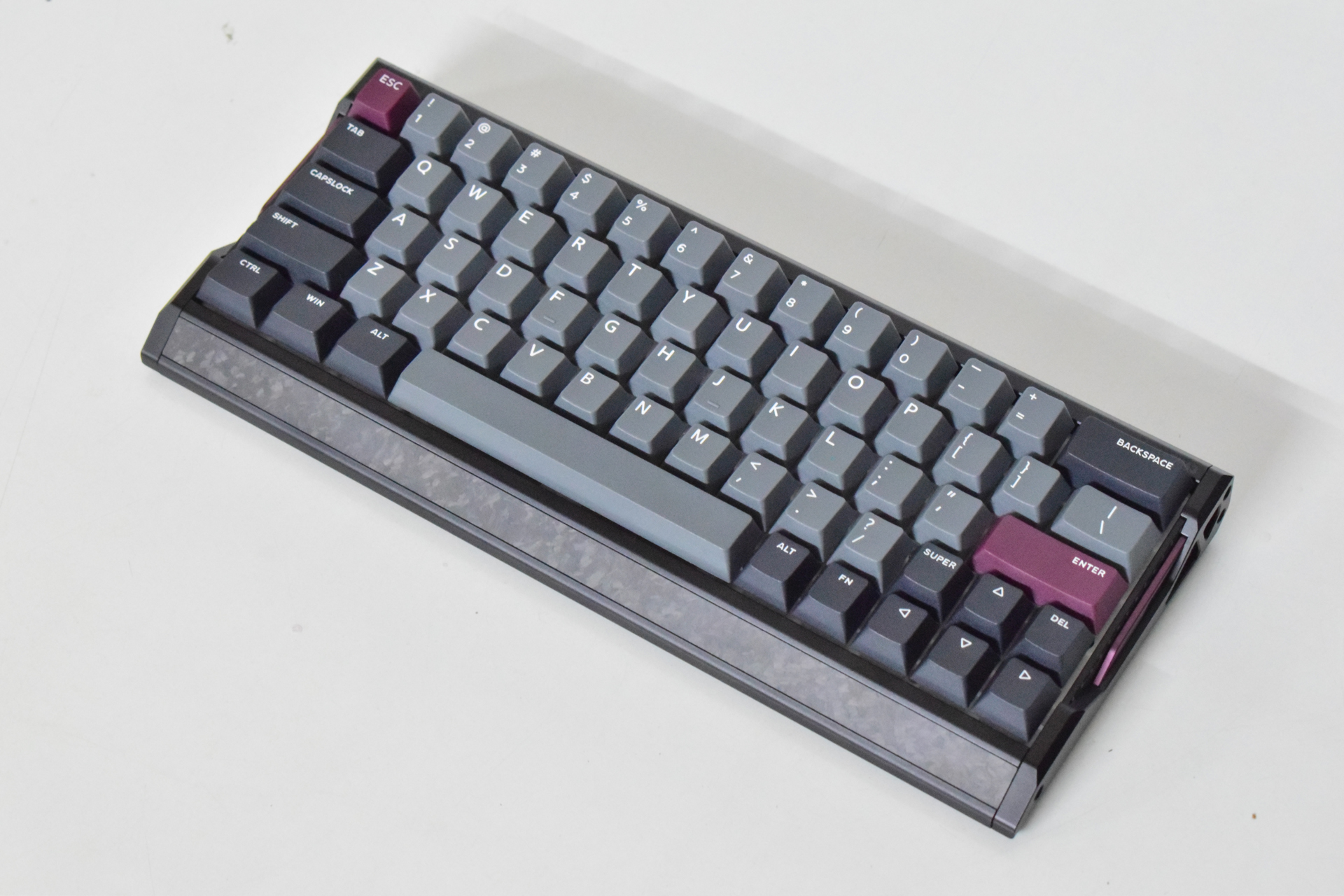

The build quality and design of the EV63 are impressive and stylish, drawing inspiration from aerospace and motorsport hardware aesthetics. Unlike traditional minimalist keyboards, the EV63 features a visually appealing black and purple color scheme. Weighing 1.2 kg, the keyboard strikes a balance between durability and portability, making it suitable for on-the-go use.

The EV63 features a CNC-machined aluminum chassis with sharp edges, complemented by an angular design on the side profiles. A forged carbon-fiber insert enhances the industrial look of the keyboard. Each unit’s front housing texture is unique, a result of high-pressure manufacturing. However, the lack of a wrist rest, a common feature in gaming keyboards, is a notable absence in the EV63.

Despite its compact footprint, the EV63 maintains a practical layout with essential features like arrow keys, crucial for daily tasks. The keycaps are constructed from double-shot PBT, known for durability, with opaque legends. The south-facing LEDs ensure that RGB lighting shines brightly through the keycaps.

In terms of performance, the EV63 stands out for its speed. The combination of quick actuation and advanced Hall Effect technology, with a wider voltage range, results in exceptionally smooth switches. The Magnetic X Ultra switches offer rapid-trigger functionality, enhancing gaming performance, especially in fast-paced games. While the 8KHz polling rate may not be essential for all users, it certainly enhances the responsiveness of the keyboard.

The EV63’s customizability is a key strength, allowing users to swap switches and customize performance with ease. While the provided switch puller facilitates switch replacement, some users may find it challenging to remove switches without damaging the keyboard. The web-based software offers extensive customization options, surpassing other keyboards in its category. Users can access various tabs for different customizability options, enhancing the overall user experience.

The EV63’s RGB lighting, while not the brightest, offers a visually appealing experience. The software’s Performance tab allows users to set actuation distances per key, with preset profiles available for quick selection. The eSports Profile, in particular, offers customized settings for rapid actuation, catering to gaming enthusiasts. The keyboard’s Professional Presets feature provides access to profiles of popular gamers, enhancing the overall gaming experience.

The EV63’s customization options extend to advanced key binding configurations, enabling users to tailor key presses to their preferences. The software’s Crosshair Center tab offers crosshairs of professional gamers from popular games like CS2 and Valorant, enhancing gameplay immersion.

Verdict

The IQUNIX EV63 stands out as an exceptionally fast and feature-rich magnetic keyboard, excelling in gaming performance. However, these advanced features come at a premium price.

The EV63 offers extensive customizations suitable for all types of gamers, supported by a user-friendly web-based software to enhance performance. With its compact design, solid build quality, ultra-fast switches, and 8KHz polling rate, the EV63 emerges as the top choice for serious gamers, especially in competitive gaming scenarios where every millisecond counts.
